- "A failsafe is an electronic device which detects radio interference, or lack of a signal from the transmitter, it is then able to set a servo to a predetermined position. The servo must be able to then switch off power supply to drive and weapon systems – this can be achieved via micro switches, relays, etc."
- — Official definition of a 'failsafe' (Robot Wars Technical Sheet No. 1, 2002)[1]
In Robot Wars and other robot combat competitions, a failsafe is an electrical component which automatically cuts off power to a robot's circuitry systems (e.g. for drive and weapons) when there is a malfunction or the radio signal from its transmitter is lost. The device can either be a separate component or integrated into the circuitry of certain types of receivers or speed controllers.
A common way of demonstrating the failsafe's operation is by switching off the robot's transmitter while the robot itself is activated. If properly set up to return the circuits to a neutral 'off' position, the failsafe should cause the robot to immediately stop moving if it is being driven, not start moving if it is in a stationary position, and to also automatically disable weapons if they are being operated in similar ways.[2]
Failsafes are an essential safety feature for all combat robots and other radio-controlled vehicles, preventing them from losing control if the radio signal is lost and potentially causing injury.
History[]
Series 1-3[]
Limited information is available on the application and use of failsafes by competitors in The First Wars. A rudimentary approach was employed by one competitor, Barry, which consisted of a separate braking system keeping its wheels locked in place under most circumstances. Only when Barry's drive motors received inputs from its transmitter would the brakes release and the wheels turn, though this did not prevent it from suffering multiple radio interference issues during early filming for the series.[3]
An early mention of 'radio control failsafe systems' was made in the regulations for The Second Wars, which mandated their use on middleweight and heavyweight class competitors.[4] Failsafe checks were also part of the mandatory technical and safety checks carried out during the auditions,[5] and the importance of these devices highlighted in official media such as The Constructor's Guide. In the latter, Team Razer briefly explained the failsafe they used for their own robot, which operated off a microswitch connected to its cam mechanism.

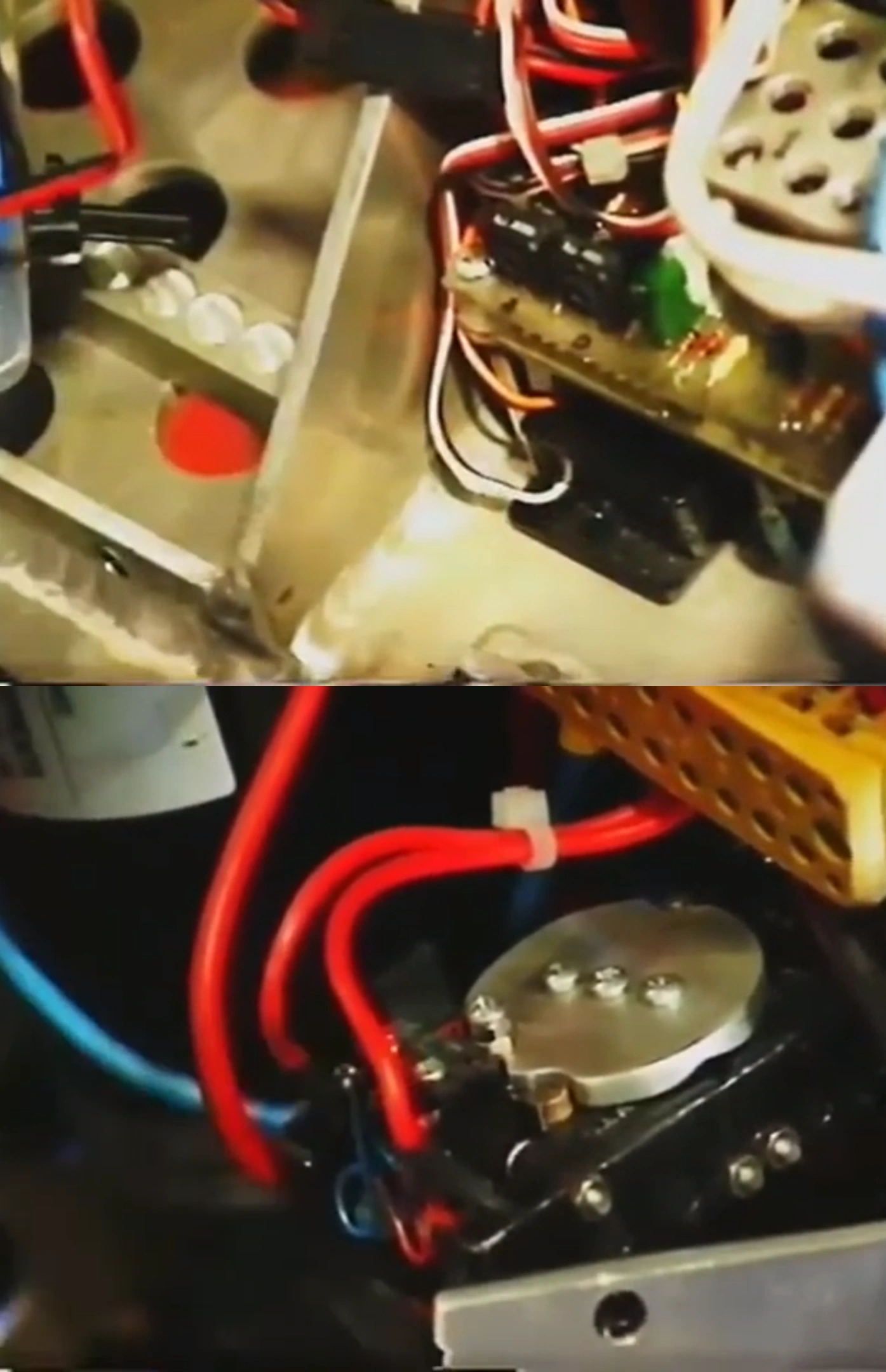

- "...the microswitch shuts the whole system down. It's linked up to the speed controllers and it cuts the supply voltage to them, and stops the machine clearing off under its own steam. As soon as it loses the signal from the transmitter... the machine shuts down completely dead."
- — Ian Lewis explains the microswitch used as part of Razer's failsafe
Some robots, such as Panda Monium, were nevertheless not fitted with a failsafe by the time of their auditions. One, Disruptor, even competed in the televised show without one or or an on/off switch, another safety feature required under the Series 2 rules.[4]
- "The most disturbing fact about Disrupter [sic] is that it had no safety circuits and no main on/off switch which meant Disrupter [sic] was always live and if you touched the microswitches, well I think you get the idea."
- — Oliver Steeples, commenting on Disruptor's lack of failsafe or power switch[6]

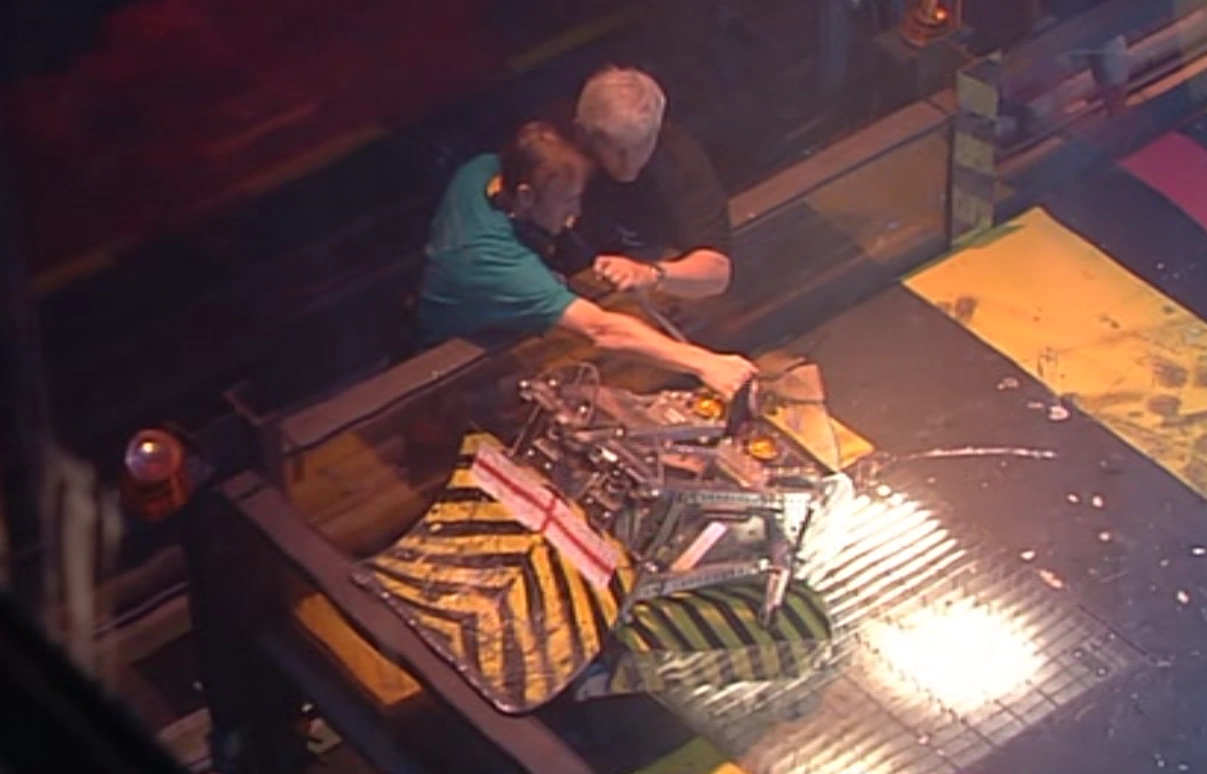

The risks of not having a failsafe manifested themselves once Panda Monium was placed in the test area for its audition. On its first test, it drove straight into the safety barrier when Team Panda switched off its transmitter under Mat Irvine's prompts. Upon powering up their machine for a second test, Team Panda inadvertently caused Panda Monium to drive off and hit the barrier again without any control inputs from captain Pete Collier.
- "Mat Irvine took a look over Panda and discussed the merits of failsafes (which we didn't have). He then gave us a slip so we could check out the transmitter. We moved Panda into the test area and started her up. After a few moves, Mat told us to switch off the transmitter. The result was that Panda turned towards the security barrier and charged at full pelt. I couldn't stop her in time and she hit the barrier at full speed. She pushed it about 1.5 feet backwards and stopped. Chris [Loader] shut the system down, but the chassis and shell had been ripped off. This meant we had to clear the debris and run again without the top.
This time, Chris stayed in with her. He switched on the power and she just shot off!! I didn't even move the stick. This time she out-ran Chris and eventually smashed into the wall on the far side of the arena. DOH! The batteries were torn from their mountings and Chris had to carry the pieces back." - — Pete Collier of Team Panda, recollecting the initial control issues Panda Monium had without a failsafe[7]
A failsafe was ultimately added to Panda Monium following the audition, significantly improving its control ahead of its eventual selection as a Series 2 reserve. It subsequently displayed very few control issues during its televised appearance in Heat A.[8]
As the main Robot Wars arena and pit area were filmed in a television studio, competitor machines were still subjected, however, to many sources of radio interference. These included cameras, power cables, lights, internal combustion engines installed in many of the House Robots[9], and even the angle grinders used for the Ramrig hazard in the Series 2 Gauntlet.[10] Other issues included cases where more than one robot would end up using the same radio frequency at the same time, especially if paired with a transmitter loaned to their teams by the Robot Wars production staff. A 'full frequency scan' - as explained by Derek Foxwell in Episode 12 of Robot Wars Revealed - was implemented to detect any abnormal frequencies that would potentially disrupt or compromise the safe running of the show. Even with the scans, however, radio signal was still often difficult to maintain throughout filming of earlier series due to the aforementioned circumstances.
Many teams - particularly during this period of the show's history - had problems with their failsafes cutting in and making the robot stop unexpectedly under normal event conditions. Alternatively, an otherwise perfectly-functional robot could exhibit sudden and jerky movements if the cause of the interference was activated nearby, even if it was meant to be left stationary.
- "Ah the best laid plans. We set the robot up on the line and all looked great. It inched backwards and forwards slowly in perfect control. Then Matilda's petrol chainsaw was started. The moment it fired the robot started to jitter on the line. Simon [Harrison] and I looked at each other and Steve [Monk] said 'We've got a problem here'. Too late ! 3-2-1 activate !"
- — Phil Brett recollects one case of interference affecting King Buxton in Series 2[9]
Roboteers known to have highlighted radio interference issues include Phil Brett of Team B, Rob Knight from Random Violence Technologies, Peter Redmond from Team Nemesis, members of Team Razer and Robin Herrick from the Cold Fusion Team, who all experienced these on various occasions throughout The Second Wars.[10] Interference was particularly attributed to control issues and sudden immobilisations in multiple interviews shown throughout the Series 2 spin-off Robot Wars Revealed. One competitor, Vercingetorix, was shown in the latter to have had severe issues with maintaining radio signal throughout its run in Heat L, even while being operated on different frequencies.
- Craig Charles: "One more fight, and you're through to the Series Semi-Finals. You feeling confident?"
- Rob Knight: "Err, we'd be more confident, but something's going wrong with the drive, so... it's getting really bad interference."
- — Mortis' post-Arena Semi-Final interview in Series 2, Heat C, revealing the robot's radio issues on television
Furthermore, the implementation of failsafes did not entirely prevent robots from losing control during various stages of filming. One such incident of this occurred to Oliver Steeples' Griffon, which, to mitigate interference issues, was forced to exchange its original speed controller interface for one which lacked a failsafe entirely. Steeples thus experienced great difficulty controlling his machine whenever it attempted to perform its arena introduction in front of camera crews, a problem previously experienced by Barry in The First Wars:
- "The previews were done but due to interference I had to remove my PIC controllers (BETA test boards provided by Dan Danknick) for the 4QD interfaces and replace them with a very jittery servo/variable resistor combination and no failsafe. This lead to hassles in the preview when I was told to go to a control box and drive the robot to a point and then turn and drive off. Easy enough right, no. As soon as I got more than 10ft away it went mental so I had to do my preview sitting behind the screen (bottom left if you can see me on TV). The robot started moving and it veered to the right so I tried to compensate but it shot forward crashing into scenery and sending the camera man away in the opposite direction quite fast."
- — Oliver Steeples, outlining the problems Griffon encountered during filming for its arena introduction[11]
A similar situation affected other machines such as Whirling Dervish, which at one point fell off the stage due to suspected interference and damaged the concrete floor below. This was revealed by David Allsopp during an interview aired as part of Episode 6 of Robot Wars Revealed, though fortunately no one was known to have been injured in this instance.
- "The first time we tried this on stage, we had – we think - some interference from somebody welding next door. The whole robot shot backwards off the edge of the stage and fell a couple of feet onto the concrete... leaving a big hole, I think."
- — Dave Allsopp recounts an interference incident affecting Whirling Dervish in Robot Wars Revealed
Likely in response to incidents like these, roboteers such as Rex Garrod expressed strong concerns that the rules regarding failsafes and other safety devices were not being properly enforced at filming. Garrod himself was especially vocal about this, calling for improvements to these rules in subsequent series in order to minimise the risk of further accidents.
- "...I got a rollicking from a so called health and safety man (for drilling a hole in a piece of plastic, half a mm thick with half mm drill bit ,without goggles and leather gloves), I told him that serious accidents would occur because of their lack of proper real safety precautions like checking the all important failsafe devices that MUST be fitted on ALL robotic machines AND PROPERLY TESTED BY AN EXPERT WHO UNDERSTANDS THE DEVICES AND THEIR FAILINGS. He merely walked away. That advice fell on deaf ears, only for a serious accident (hospital case) to occur almost immediately."
- — Rex Garrod, criticising Series 2's implementation of failsafe rules[12]
Despite Garrod's warnings, an accident subsequently occurred shortly after his communication with a member of the production crew about this issue. During filming for The Third Wars, a number of behind-the-scenes accidents were also linked to radio interference as well as a mix of ineffective safety switches and failsafes. Dissatisfied over the show's safety standards at the time, Garrod immediately retired from Robot Wars in response.
- "The next year I arrived at the studio, only to find another robot had run amok, and injured another stagehand (machine fell off a trolley and the switch shorted out and an inefective [sic] failsafe didn't stop the machine)."
- — Rex Garrod, citing improperly-prepared failsafes as a cause of one of the Series 3 incidents.[12]
Series 4-7 and International Series[]
From The Fourth Wars onwards, more detailed rules regarding failsafes were issued, stressing the importance of them being fitted to any 'dangerous' circuits such as drive and weapon systems.[13] This was one of a number of measures to ensure that earlier incidents could not be repeated. A 'failsafe check' was also in place for all applicants, involving robots being placed on their stands, operated in full drive (forward/reverse/left/right) and having their transmitters switched off mid-drive to prove the device's functionality.[14]
For Robot Wars: Extreme Warriors, Mentorn provided each competing US robot with 40-Mhz radio equipment and failsafes in order for them to comply with UK regulations.[15] One competitor, The Wife, was forced to withdraw from Season 1 and be replaced by Tiger Cat, after its team could not resolve issues with the failsafes it used.[16]
The rules regarding failsafes by the time of The Seventh Wars were as follows:
- "i) On Middle and Heavyweight robots all operating circuits that are deemed to be 'dangerous' (normally the drive and weapons) must have an approved failsafe device fitted to each circuit.
ii) This MUST bring that circuit to a pre-set 'off' or 'zero' position if the transmitter (TX) signal is lost, to prevent further operation.
iii) The fail-safes may take the form of plug-in commercial devices; electronic circuitry incorporated into some receivers - e.g. PCM-type- or other devices - e.g. Vantec speed controllers.
iv) Whichever device(s) is selected it MUST operate to the Organiser's satisfaction before the Robot will be allowed to compete. (See Technical Sheet No. 1)." - — Robot Wars Rules and Regulations, Series 7 (2003)[17]
Series 8-10[]
For Series 8, 9 and 10, the rules regarding failsafes remained largely similar to those of The Seventh Wars, with additional requirements regarding receiver batteries and digital switches:
- "All systems that are deemed to be 'dangerous' (normally the drive and weapons) must have a 'failsafe' device. This MUST bring the systems to a pre-set 'off' or 'zero' position if the transmitter signal experiences interference or is lost. These devices should also failsafe when the receiver battery is low or if power is completely lost."
- — Series 10 Build Rules, Section 4.2.1[18]
- "The failsafe(s) may take the form of plug-in commercial devices; electronic circuitry incorporated into receivers or other devices. It could also consist of digital switches, which return to pre-set off position on loss of power."
- — Series 10 Build Rules, Section 4.2.2[18]
Failsafe devices or capability continue to be compulsory to be fitted to all robots in Fighting Robots Association (FRA) competitions today, but are most commonly a feature of the transmitter/receiver pairing and not a separate component within the robot.[19]
Comparison with removable links[]
Failsafes are often confused with removable links, a separate switch device also used to cut off power entirely and made mandatory from The Fourth Wars onwards.[13] The term "failsafe" began to be used interchangeably with "link", even in the televised series, owing to both devices being used to immobilise robots and thus making them safe for maintenance and transportation.
The main difference between the two components is that while failsafes only cut off power when a robot loses radio signal, a removable link cuts off power as soon as it is detached from the robot's drive and weapon systems. This renders the robot and its weaponry inactive under all circumstances. In the event that a failsafe is not able to perform its intended function – for example, when Behemoth's receiver crashed and left it stuck in forward drive against Mute in The Seventh Wars – the link provides an effective backup solution by removing all power from the robot upon extraction.
